Data Logging

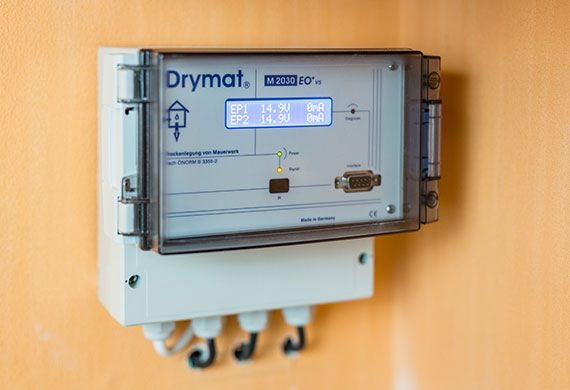

Installation des Drymat-Systems im Mauerwerk

Building diagnosis: data logging for moisture analysis

With modern data loggers, humidity values can be reliably documented over longer periods of time. The Materialfox Mini – barely larger than a matchbox – collects measurement data in up to three places at the same time. This creates a precise picture of the moisture development in the masonry. The stored data can be read out and evaluated on site directly on the PC.

Technical characteristics of the Materialfox Mini

  • Resistance/resistivity: 20 kOhm to 500 MOhm (10*log(R)).
  • Direct material moisture measurement with a display resolution of 0.1%
  • Three pairs of measuring terminals with a cable length of approx. 1.5 m, which are connected to 3 pairs of electrodes at different wall depths.
  • Logger mode: automatic data storage.
  • Storage of 4,000 measured values (optionally up to 16,000).
  • Recording interval from one second to 24 hours, adjustable via software.
  • Switching output for alarm or for controlling any other electronic devices.
  • Measured values are retained in memory even without batteries.
  • Integrated quartz-accurate clock and calendar.
  • Dimensions 35x55x15 mm (HxWxD).
  • Weight: approx. 30 g incl. battery.

Precise measurement data for informed decisions

Data logging makes it possible to trace moisture curves inconspicuously, continuously and accurately. This makes it easier to identify the causes of moisture damage and to plan targeted remediation measures.

Advice and evaluation of your measurement data

Whether for an initial building diagnosis or as a long-term check: With data logging, you create a sound basis for the preservation of your property. We will be happy to advise you on the possible applications and evaluate the collected data together with you. Contact us for a non-binding consultation.
